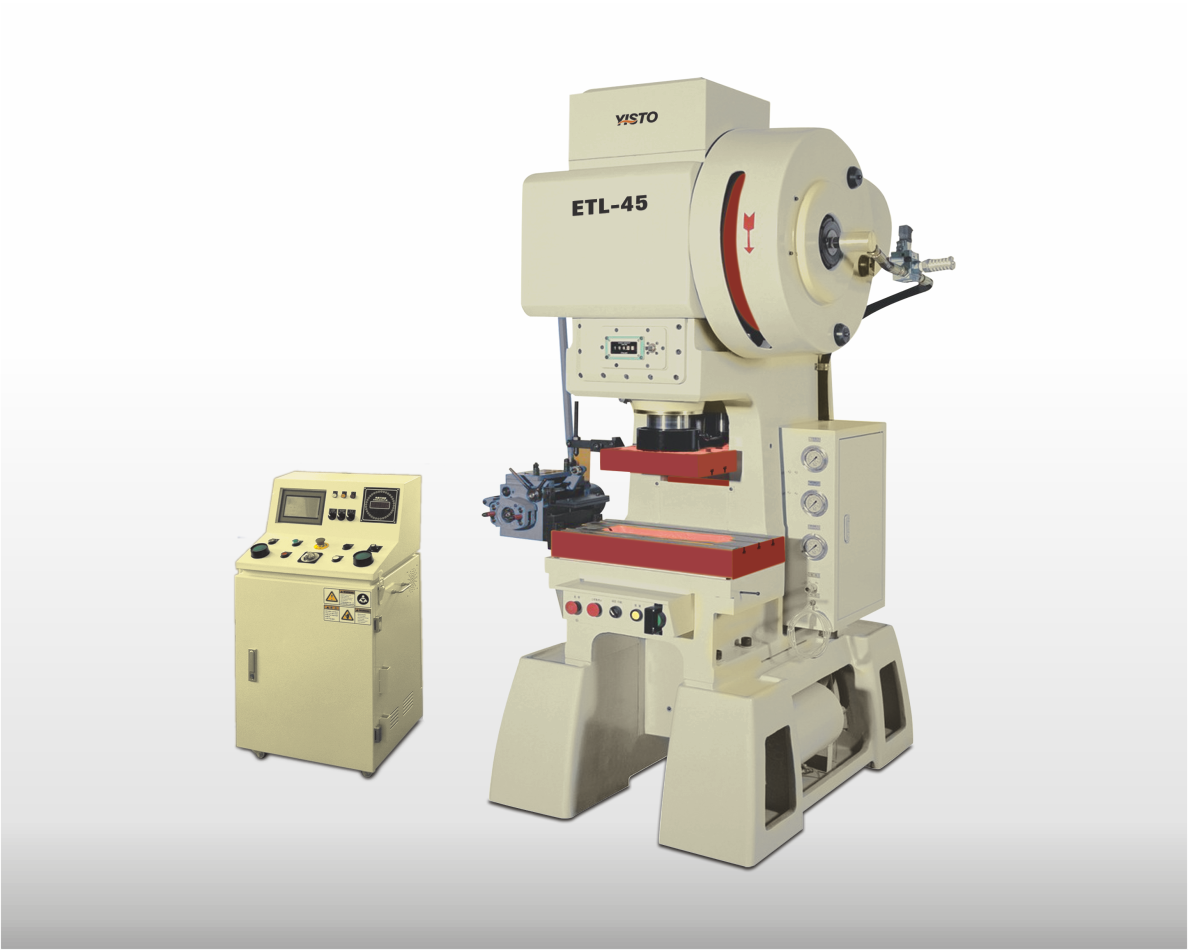

Three post guides high-speed precision punch

Performance Features
It adopts integrative and high-strength casting machine, treated by tension elimination, to guarantee the long-term precision.
The three post guides slider structure, adopts alloy steel bush and forced lubrication to minimize thermal change and maximize precision.
The dynamic balance system controls stability of bottom dead center by shake produced by slider running up and balancing crankshaft.
Manual height adjustment is equipped with the height indicator and oil pressure mode locking device.
The human-computer interface (electronic cam +rotary encoder) is easy and accurate to use.
Operating functions are integrated on the LCD and engine base malfunction can display automatically.
Extremely sensitive clutch/brake units and top international duplex magnetic valves guarantee the precision and safety of punch slider revolving and stopping.
The thorough electric loop design can match all kinds of automation equipment to produce automatically, reduce cost and increase efficiency.

Standard Configuration

Stop at peak HM slider adjusting device Height indicator Converter  Programmable control PIC Touch screen(pre-cut, prejudge and angle display) Operation box before platform Air source quick coupling Jet-air device Snap gauge  Main motor(speed governing)

Oil pressure mode locking Mechanical crankshaft angle indicator Forced circulation oil device Toll cabinet Operating manual Power socket Independent electrical cabinet Rubber blanket crash pad

Optional Configuration

Gasbag-type quakeproof Feeder Material frame Material oil lubricating device Bottom dead center detector

Oil cooling machine  Mold lamp High-speed trolley feeding system Bump-cutter machine Dynamic balance device
