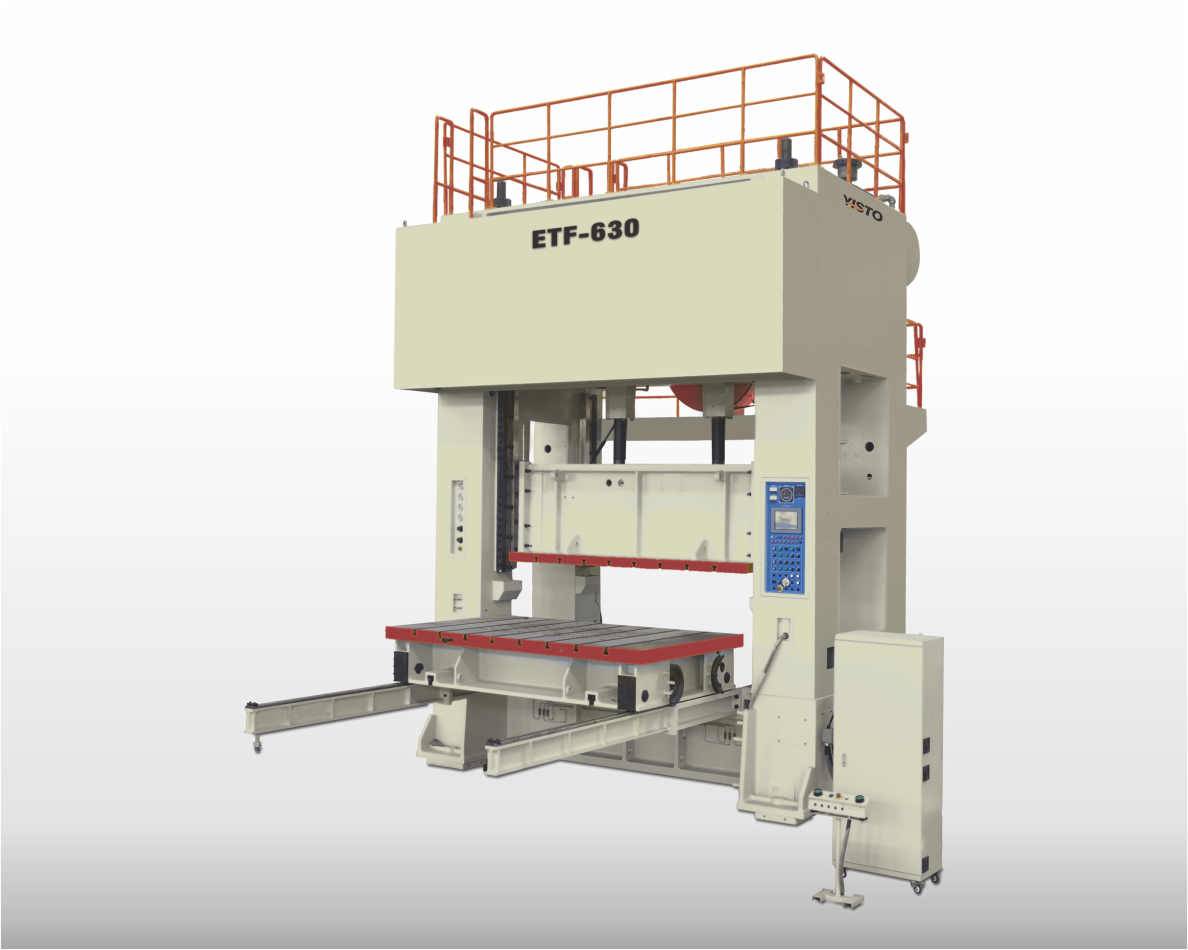

Split and close double-crankshaft precision press

Performance Features
Eight-side long rectangle guides of the slide in high moving precision and high accuracy.
Hydraulic overload protection device achieving high sensitivity in effectively protecting against overload, to ensure convenient and reliable operation.
Temperature transducer for key transmission part, with alarming function for over temperature to ensure the operation.
Imported pneumatic combination friction clutch-brake, with low noise, long service life, large clutch torque and small braking angle, to ensure reliable safety and flexible action.
Straight type and separated-structure including three parts: crossbeam uprights and base tightened by four tensile screw rods, high rigidity and less deformation.(400~600)

Standard Configuration

Oil-pressure overload device Variable frequency and speed motor (speed governing) Digital height indicator Slider and die balancing device Electronic cam switch device Prejudging counter Air source contact Second falling protector Air blowing device Independent control cabinet Miss inspection device

Main motor inversion set Photo-electricity safety protection device Imported oil-gathering silencer Imported electric butter lubricating device Power socket Touch(pre-cut, prejudge and total count) Die lighting device

Optional Configuration

Vapor-pressure die backer device Quick exchange of die device (die lifter, die clamper or die mover) Cam top material device Feeder (air, machine and NC)

Material frame Leveller  Mechanical arm
