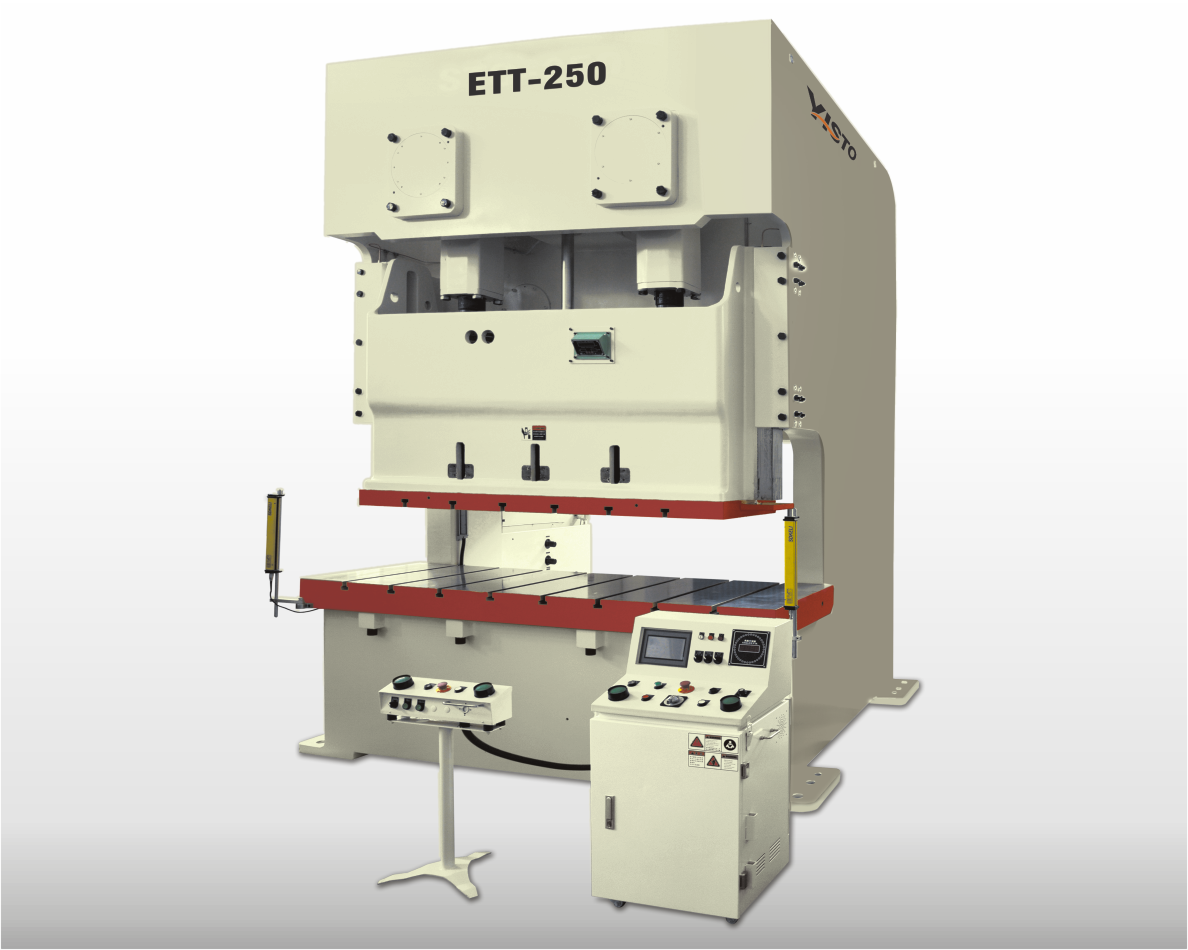

Open double crank precision punch

Performance Features
It adopts the work center of high alloy steel, double crankshaft and two width, connecting rod structural support and optimal design.
In order to guarantee relative stability when the machine is working, adopt the design of symmetry of two balancers.
The precision of mold adjustment is as high as 0.1mm, safe, convenient and reliable.
Such parts as crankshaft, gear set and connecting rod, after hard oxidation, mill and other fabrication processing, have extreme comprehensive mechanical performance and durable function.
Adopt highly sensitive and reliable clutch/brake units and international top duplex magnetic valves and overload protection device, to guarantee the precision and safety of press slider revolving and stopping.
Reasonable physical design is convenient to realize automatic production, reduce cost and increase efficiency.
Advanced design concept, low noise, low consumption and saving energy.

Standard Configuration

Electronic crankshaft angle indicator Double-cylinder independent oil-pressure overload device Digital height indicator Imported electrodynamic butter lubricating device Electronic cam device Air blowing device ½” primary circuit Air source contact ½” secondary circuit Miss inspection device Power socket Mechanical quakeproof foot

Miss inspection device Maintenance tools and tool cabinet Main motor inversion set Photoelectricity safety protection device Imported oil-gathering silencer Second falling protector Converter Slider and mold balancing device

Optional Configuration

Vapor-pressure die backer device Cam top material device Foot switch Safety dog and safety bolt Quick exchange of die device

Automatic feeding device Flattener(bump-cutter machine)
