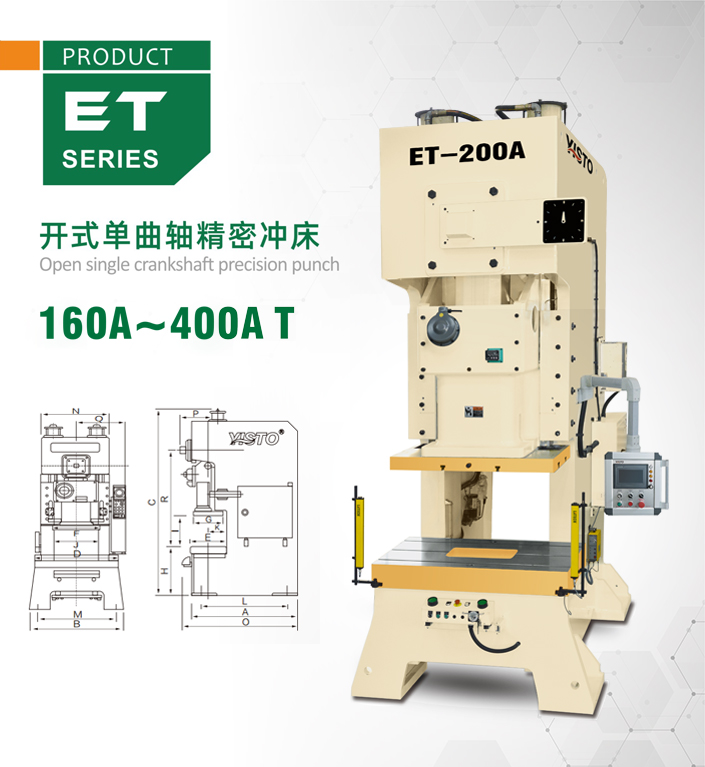

Open single crankshaft precision punch
Release date: 2024-08-15 11:51:24 Visits: 1075
● With high rigidity rack design, they are welded with theuse of high-quality steel plates, through relieving ofinternal stresses, so that stability and reliability of the whole machine in precision are enhanced.
● Consistent driving center and machine center toguarantee accurate and stable punching.
Performance feature
● In order to guarantee relative stationarity of machine operation, it isnecessary to balance two balancers.
● Moulding-adjustment precision is as high as 0.01mm, safe, speedy, and reliable.
● Through hard oxidation and grinding,such parts as bent axles. gear sets,and connecting rods possess higher combination property and tolerance.
● Adopt highly sensitive and reliable clutch/brake and internationallytop duplex magnetic valve, as well as overload protection devices,toguarantee precision and safety for operation and stop of press rams.
● Machine''s structural design shall be reasonable, for the convenience ofrealizing automatic production, reducing cost, and improving efficiency.
● Possess advanced design concepts，low noise,low consumption, and energy saving.
Standard configuration
|
● Lnverter ● Hydraulic over-load protector ● Electrical automatic lubrication system ● Slide sdjust device ● Die hight indicator ● Balance device ● Misfeed detection consent |
● Power supply ● Crank angle indicator ● Electrical stroke counter ● Air source connector ● Auti-vibration press mount ● Photo-electronic safety device ● Against over-run safety device |
● Air ejector ● Maintenance tool box ● Operation manual ● Die room light ● Touch pad(preset, total counter) ● Human-computer counter system |
Optional configuration
|
● High performance wet clutch & brake ● Pneumatic die cushion device ● Foot switch ● Quick die change device (Die lifter, clamp and die arm sepjes ) |
● Slide knock-out device ● Feeder ● Uncoiler ● Straightener ● Mechanism hand |
